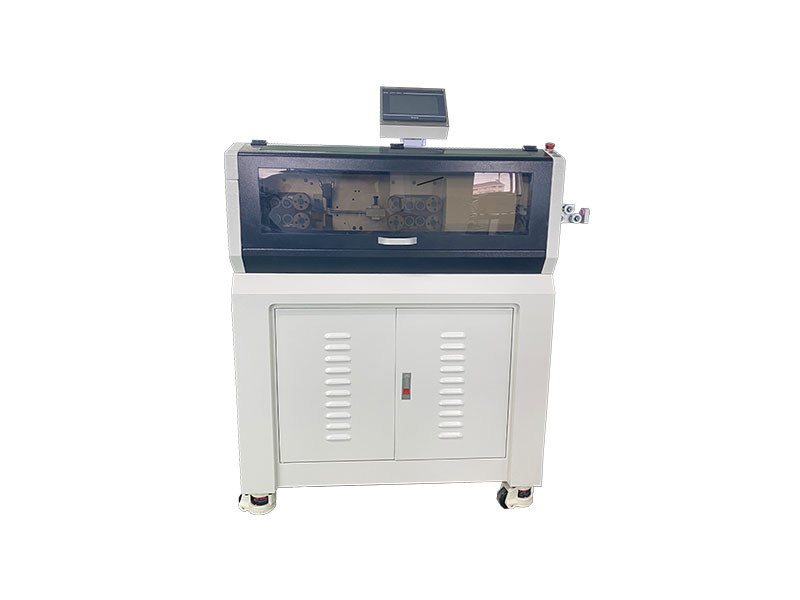

产品相册：
特点说明（Characteristic description)
1、这款机器主要是有旋切功能，能剥多层且切口平齐,旋剥还是直剥方式可任意设定，刀架有2组刀具可移动，可以无需更换刀具任意选择，从而达到优品的效果！
1, this machine is mainly equipped with function of rotary cutting, can peel multi-layer and cut flat, rotary stripping or direct stripping can be set at will, the knife rest has 2 sets of blades can be moved, no need to change , Choose any to achieve high efficiency and superior quality!
机型规格Model specification
型号 Model | HC-608KZ HC-608KZ |
外形尺寸 Dimension | L910*W690*H490mm L910*W690*H490mm |
重量 Weight | 约95KG about 95KG |
显示方式 Display | 中英文，触摸屏操作 Chinese and English, touch screen operation |
电源 Power | 220V／2000W 220V／2000W |
切割长度(mm) cutting length | 10-100000MM 10-100000MM |
前后端剥皮长度 front/rear end stripping length | 前端：1-300，后端1-180MM front end :1-300mm Rear end:1-180mm |
剥线范围 stripping range | 4-25平方mm2 4 自动调节线芯，不同规格线缆无需更换刀具4-25mm2 Automatic adjustment of the core,ifferent specifications of the cable without changing the blade |
可剥层次 peel level | 1-8层 1-8layers |
导线类型 cable type | 新能源线、电缆线、同轴线、电力线等 New energy cable, cable , coaxial cable , power line, etc |
切割深度精度 Cutting depth accuracy | 0.01MM |
切断精度 cutting accuracy | 变动范围：1mm+切断长度x0.2%以下 Range of fluctuation:1mm+ cutting length x0.2% below |
导管直径 conduit diameter | 6-14MM(旋刀导管6-12mm) 6-14MM(conduit of rotaty blade6-12mm) |
驱动方式 driving way | 伺服驱动 servo drive |
切剥方式 cut strip way | 移动刀架切剥+旋切 Move the knife rest to peel + srotary cutting |
刀具 Blade | 4片进口高速钢,2片钨钢 4pcs Imported high speed steel; 2pcs tungsten steel |
生产率（次／小时） Productivity(pcs/h) | 依作业线总长及作业程序不同，最少可达300-500PCS/小时 Up to 300-500pcs/hour, depending on the length of the line and operating procedures |
送线方式 wire feeding way | 皮带送线，线缆无压印无刮痕！ Belt feed line, cable no impression no scratch! |
