特点说明Characteristic description

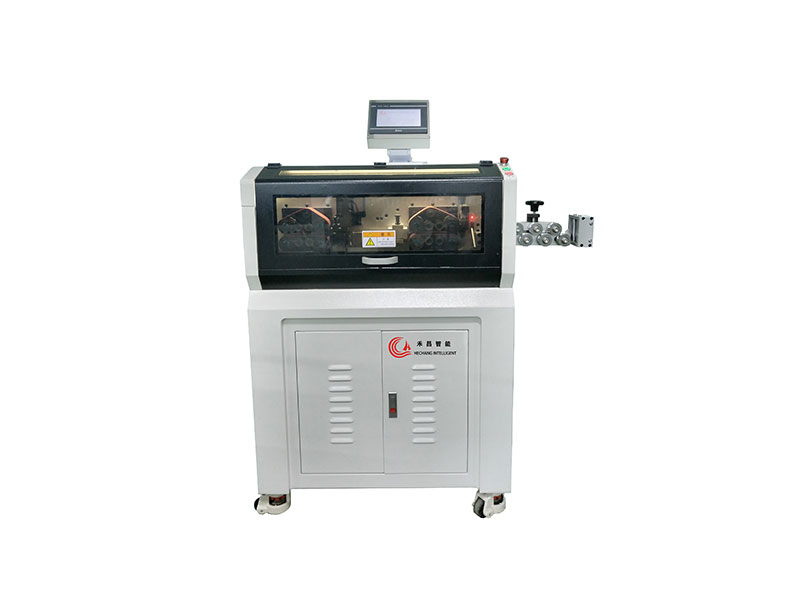

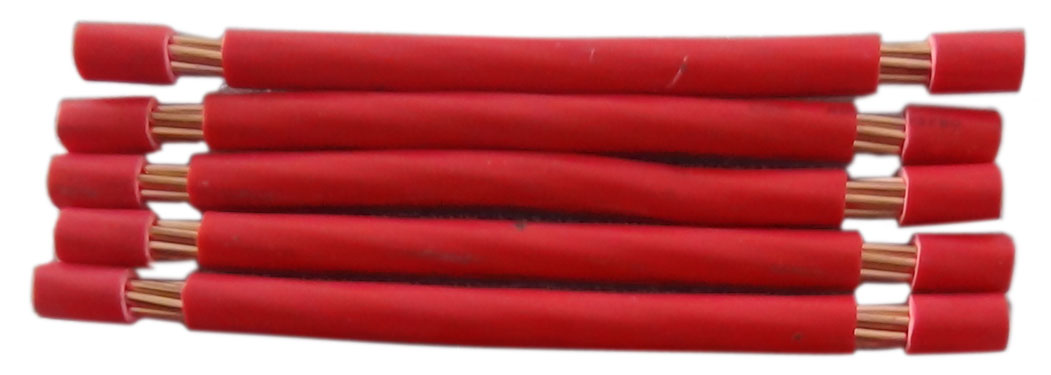

这款机器主要针对汽车行业、电力行业，电控柜，电池盒的线，可把整卷电线按照所需要的长度、剥头进行切断剥皮，从而大大提高了效率,BV硬线，BVR软线都好用。
This machine mainly aims at autocar craft， electric power craft，the electricity controls a cubicle，the wire of battery box，can the whole electric wire according to need of length，shelled progress to slice well and shell well and thus to consumedly raise an efficiency. BV hardline, BVR the soft wire is all friendly.
机型规格Model specification
型号Model | HC-608L2 |
外形尺寸Dimensions | L1005X685X1250mm |
重量Weight | 180kg |
显示方式Display | 中文，液晶 Chinese interface LCD display or English interface |
电源Power | 220V/2000W |
切割长度(mm)Cutting length | 1mm-9999.99mm |
前端剥皮长度Stripping Leight | 护套线MAX 300mm 电缆线全脱MAX 70mm |
后端剥皮长度 | 护套线MAX 200mm 电缆线全脱MAX 120mm |
剥线范围Cutting tolerance | 10-95mm² BVR多股软线 RVR |
导线类型Wire Material | 导管跳动型 |
切割公差Cutting tolerance | Within 0.002xLmm※L=cutting length |
导管直径Max. wire diam | 6-21mm |
驱动方式 Driving way | 皮带送线，20轮驱动，独立驱动盒驱动 Twenty wheels driver，independent driver boxdriver |
生产率（次/分）Productivity(pcs/mm) | 650PCS/h, L2=500mm |
气压Air Pressure | 0.5-0.75MP |
